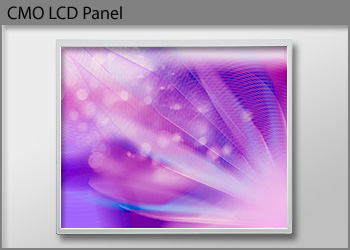

CMO LCD Panel

Product catalog

Product manual

Splendi sources comprehensive brands of LCD panel like CMO, AUO, NEC, LG, Samsung, CPT..etc which with complete size from 12.1” to 47”. It’s ideal for retails, medical equipment, financial services, transportations, International tradeshow and conference, and industrial LCD monitor. For complete solutions for customer, we also provide professional technical supports and custom engineering services (ODM) like LCD kiting, touch screen integration, LCD panel integration and enhancement.

- Professional technical supports and custom engineering services (ODM)
- Complete LCD panel size from 12.1" ~ 476"
- Ideal for retails, medical equipment, financial services, transportations, International tradeshow and conference, and industrial LCD monitor
- Optional supports for lcd controller board, CCFL LCD inverter, touch screen, and peripheral

TOP▲

Desktop Standard Ratio

Model Number	Interface	Resolution	Brightness	Contrast Ratio
CMO 15.6"_M156B1-L01	1ch LVDS	WXGA 1366 x 768	250	500:1
CMO 17"_M170E5-L0A	2ch LVDS	SXGA 1280 x 1024	400	500:1
CMO 17"_M170E5-L09	2ch LVDS	SXGA 1280 x 1024	300	500:1
CMO 18.5"_M185B1-L02	1ch LVDS	SXGA 1280 x 1024	250	1000:1
CMO 19"_M190A1-L0A	1ch LVDS	WXGA+ 1440 x 900	300	1000:
CMO 19"_M190Z1-L03	2ch LVDS	WSXGA+ 1680 x 1050	300	1200:1
CMO 21.6"_M216H1-L01	2ch LVDS	WUXGA 1920 x 1080	300	1000:1
CMO 22"_M220Z1-L03	2ch LVDS	WSXGA+ 1680 x 1050	300	1000:1
CMO 22"_M220Z1-L09	4ch LVDS	WSXGA+ 1680 x 1050	300	1000:1
CMO 22"_M220J1-L01	2ch LVDS	WUXGA 1920 x 1200	300	1000:1
CMO 23.6"_M236H1-L01	2ch LVDS	WUXGA 1920 x 1080	300	1000:1
CMO 23.6"_M236H5	4ch LVDS	WUXGA 1920 x 1080	300	1000:1

TOP▲

NB CCFL

Model Number	Interface	Resolution	Brightness	Contrast Ratio
CMO 12.1"_N121X5-L06	1ch LVDS	XGA 1024 x 768	150	300:1
CMO 14.1"_N141XC-L02	1ch LVDS	XGA 1024 x 768	180	450:1
CMO 15.6"_N156B3-L02	1ch LVDS	WXGA 1366 x 768	220	500:1
CMO 18.4"_N184H4-L01	2ch LVDS	WUXGA 1920 x 1080	300	500:1

TOP▲

Industrial Application (CCFL Backlight)

Model Number	Interface	Resolution	Brightness	Contrast Ratio
CMO 10.4"_G104V1-T01	TTL	VGA 640 x 480	450	1500:1
CMO 10.4"_G104X1-L01	1ch LVDS	XGA 1024 x 768	400	1200:1
CMO 12.1"_G121S1-L01	1ch LVDS	SVGA 800 x 600	450	1000:1
CMO 12.1"_G121X1-L01	1ch LVDS	XGA 1024 x 768	450	700:1
CMO 13.1"_G133I1-L02	1ch LVDS	WXGA+ 1280 x 800	400	800:
CMO 14.1"_G141I1-L01	1ch LVDS	WSXGA+ 1680 x 1050	700	700:1
CMO 15"_G150X1-L03	1ch LVDS	XGA 1024 x 768	450	700:1
CMO 15.4"_G154I1-L01	1ch LVDS	WXGA+ 1280 x 800	700	700:1

TOP▲

Medical Application

CMO 23.6"_M236H5	4ch LVDS	WUXGA 1920 x 1080	300	1000:1
Model Number	Interface	Resolution	Brightness	Contrast Ratio
CMO 18.1"_R18	2ch LVDS	SXGA 1280 x 1024	800	700:1
CMO 18.1"_R181E2	2ch LVDS	SXGA 1280 x 1024	270	400:1
CMO 19"_R190E1	2ch LVDS	SXGA 1280 x 1024	600	1000:1
CMO 19"_R190E3	2ch LVDS	SXGA 1280 x 1024	300	1000:1
CMO 19"_R190E5	2ch LVDS	SXGA 1280 x 1024	1500	1000:1
CMO 19.6"_R196U2	2ch LVDS	UXGA 1600 x 1200	800	700:1
CMO 20.8"_R208R1	LVDS	QXGA 2048 x 1536	1000	900:1
CMO 20.8"_R208R2	LVDS	QXGA 2048 x 1536	400	400:1
CMO 20.8"_R208R3	LVDS	QXGA 2048 x 1536	600	600:1
CMO 20.8"_R208R5	LVDS	QXGA 2048 x 1536	1500	900:1
CMO 21.3"_R213T1	LVDS	QSXGA 2560 x 2048	1000	700:1
CMO 21.3"_R213T3	LVDS	QSXGA 2560 x 2048	1100	850:1
CMO 30"_R300M1	LVDS	DQSXGA 4096 x 2560	1200	1000:1

TOP▲

TV HD

Model Number	Interface	Resolution	Brightness	Contrast Ratio
CMO 18.5"_V185B1	1ch LVDS	WXGA 1366 x 768	300	800:1
CMO 21.6"_V216B1	1ch LVDS	WXGA 1366 x 768	400	800:1
CMO 26"_V260B2	TTL	WXGA 1366 x 768	450	800:1
CMO 31.5"_V315B3-L04	1ch LVDS	WXGA 1366 x 768	500	2500:1
CMO 31.5"_V315B5	1ch LVDS	WXGA 1366 x 768	450	3000:1

TOP▲

TV Full HD

Model Number	Interface	Resolution	Brightness	Contrast Ratio
CMO 37"_V370H3	PP RSDS	WUXGA 1920 x 1080	500	5000:1
CMO 37"_V370H3 (120Hz)	2ch LVDS	WUXGA 1920 x 1080	450	4000:1
CMO 42"_V420H1	2ch LVDS	WUXGA 1920 x 1080	500	4000:1
CMO 42"_V420H1(120Hz)	4ch LVDS	WUXGA 1920 x 1080	500	4000:1
CMO 47"_V470H2	2ch LVDS	WUXGA 1920 x 1080	500	4000:1
CMO 47"_V470H2(120Hz)	2ch LVDS	WUXGA 1920 x 1080	500	4000:1
CMO 47"_V470K1	4ch LVDS	QFHD 2560 x 1440	500	1500:1

TOP▲

Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…

TOP▲

Retails and restaurant
Medical equipment
Financial services
International tradeshow and conference
Transportations: terminal, Airport, train, bus, and metro
Entertainment: museum, stadium, theater, arena, and entertainment park
Industrial LCD monitor
Kiosk
