LED Controller Board – LDB-2300
 Product catalog
Product Manual
|
|
| |

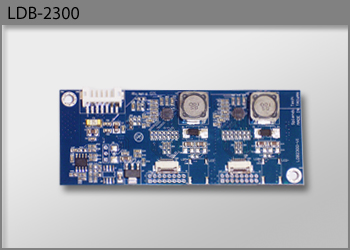

The LDB-2300 series is a high efficiency boost DC/DC controller board that drives a number of LEDs connected in a series/parallel configuration. The built-in Pulse Width Modulation (PWM) signal for the dimming control function allows users to set LED brightness smoothly. The LDB-2300 series also features a fast LED current rise/fall time to achieve a wide dimming range and minimizes LED color distortion during the dimming mode and power protection feature enables to protect LED module from damage by over current or over voltage. |
| |
| |
 |
- High efficiency DC/DC power converter for LED backlight application supports a wide range of LCD panels including AUO,
CMO, Samsung, LG, NEC, IDTech, Sharp, Fujitsu, Hannstar, CPT, Toshiba, Optrex, and Mitsubishi...etc.
- Internal Pulse Width Modulation (PWM) signal for the dimming control function
- LED Constant Current circuit
- External power On/Off control
- External dimming control, (DC level of 0V(0ff) to 5V(full-on)
- Low standby current
- LCD applications:
LDB-2320X8C2: AUO- M215HW01_V6, AUO-M240HW01-V6
LDB-2330X8B1: AUO-M185XW01 VD
-- LCD applications: Mitsubishi LCD Panel
|
Specification of LDB-2320X8C2
|
| |
 |
For further details of specifications, more information of LDB-2300 series products or ODM, please contact us at: sales@splendi.com.tw
|
