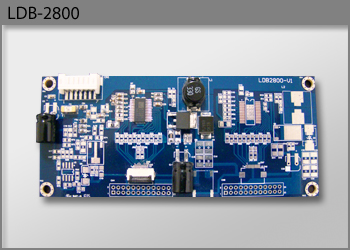

LED Controller Board – LDB-2800
 Product catalog
Product Manual
|
|
| |
The LDB-2800 series is a high efficiency Boost DC/DC controller board that drives a number of LEDs connected in a series/parallel configuration. The built-in Pulse Width Modulation (PWM) signal for the dimming control function allows users to set LED brightness smoothly.The LDB-2800 series also features a fast LED current rise/fall time to achieve a wide dimming range and minimizes LED color distortion during the dimming mode and power protection feature enables to protect LED module from damage by over current or over voltage. |
| |
| |
 |
- High efficiency DC/DC power converter for LED backlight application supports a wide range of LCD panels including Mitsubishi, AUO, CMO, Samsung, LG, NEC, IDTech, Sharp, Fujitsu, Hannstar, CPT, Toshiba, and Optrex, ...etc.
- Internal Pulse Width Modulation (PWM) signal for the dimming control function
- LED Constant Current circuit
- External power On/Off control
- External dimming control, (DC level of 0V(0ff) to 5V(full-on)
- Low standby current
- LCD applications: Mitsubishi LCD Panel
|
Specification of LDB-2840MX12B1, for Mitsubishi LCD Panel AA121XL01
|
| |
 |
For further details of specifications, more information of LDB-2800 series products or ODM, please contact us at: sales@splendi.com.tw
|
■ General Information of Model Number
|
| |
| |
 |
