LCD Controller Board – ST-100 Series
 Product catalog
Product manual
Panel Supporting List
|
|
| |

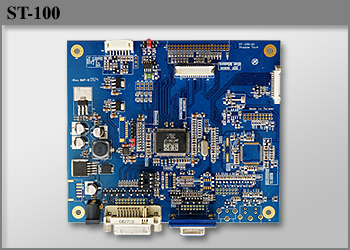

The ST-100 series LCD controller board (A/D board) provides analog and digital connection for wide range of TFT LCD monitor/flat panel display from VGA (640 x 480) to UXGA (1600 x 1200). Embedded with complete signal input ports (computer RGB, DVI, and video interfaces) video interface (Composite, S_Video, and YPbPr), The ST 100 series is an ideal device for the applications of medical equipment, bank industrial, international trade show, transportations, and entertainment. |
| |
 |
LCD Controller Board ST-91 (A/D Board, VGA)
LCD Controller Board ST-95 (A/D Board, VGA & DVI input)
LCD Controller Board ST-95U5 (A/D Board, VGA & DVI input, USB input / 5-wire Touch Screen)
LCD Controller Board ST-100 (A/D Board, VGA & DVI input)
LCD Controller Board ST-110 (A/D Board, VGA input)
LCD Controller Board ST-150 (A/D Board, VGA, DVI & Video ((CVBS / S-Video / YCbCr <SD>))
|
 |
- Compatibility with standard VESA mode
- Support wide variety ranges of TFT LCDs from VGA 640x480〜1600 × 1200 / 1680x1050（gm5766 )
- Customization for specific application requirements (ODM)
- Automatic image scaling and contrast enhancement
- Support color: 6/8 bit TFT LCD
- Screen Scaling: Up / Down scaling to fit input to panel format
- Dual Backlight functions: CCFL / LED
|
| |
 |
Panel Connectivity - Resolution:
TFT VGA 640 x 480
TFT SVGA 800 x 600
TFT WVGA 800 x 480
TFT WSVGA 1024 x 600
TFT XGA 1024 x 768
TFT WXGA 1280 x 720
TFT WXGA 1280 x 768
TFT WXGA 1280 x 800
TFT WXGA 1366 x 768
TFT WXGA+ 1440 x 900
TFT SXGA 1280 x 1024
TFT WSXGA+ 1680 x 1050
TFT UXGA 1600 x 1200
Input Interface:
Analog RGB: 60Hz at WSXGA+, UXGA
75Hz at SXGA, WXGA, XGA, SVGA, VGA
DVI-D / HDMI: 60Hz (Please use HDMI to DVI connector/ cable, not support HDCP)
Video: NTSC/PAL/SECAM (Interlaced)
Composite Video, S-video
SD Component YCbCr
HD Component YPbPr (Option)
Color: 6/8 bit TFT LCD
Function: On Screen Display (OSD) menu
Function Control: External buttons, Infra-Red controls, Serial Port control, Serial port module
Image Scaling: Up / Down scaling to fit input to panel format
Image Control: Auto configuration, Brightness, Contrast, Clock, Phase, Color temperature, Image position,Saturation, Hue, Black level.
OSD (On Screen Display):
Auto setup, Factory reset, OSD position, Timeout, Scaling to fill screen and fill to aspect, ACC / ACM-II color enhancement & Contrast adjustment
Power Requirements: +12VDC / +24VDC
Panel Power: Supports 3.3V, 5V, 12V, 18V & 24V panels (Vin must be 18V or 24V)
Panel Signal: Dual channel LVDS support
Panel Connection: One 30-pin LVDS connector
One 40-pin TTL connector
Inverter Support: DPMS Enable pin (3.3V or 5V)
Plug & Play: DDC 1,2/b compatible
Status Indicator: Dual Color LED support
Board Dimension:
Weight:
|
 |
Retails and restaurant
Medical equipment
Financial services
International tradeshow and conference
Transportations: terminal, Airport, train, bus, and metro
Entertainment: museum, stadium, theater, arena, and entertainment park
Industrial LCD monitor
Kiosk
|
 |
Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
|
 |
