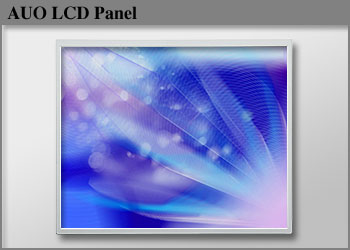

AUO LCD Panel

Product catalog

Product manual

Splendi sources comprehensive brands of LCD panel like CMO, AUO, NEC, LG, Samsung, CPT..etc which with complete size from 12.1” to 47”. It’s ideal for retails, medical equipment, financial services, transportations, International tradeshow and conference, and industrial LCD monitor. For complete solutions for customer, we also provide professional technical supports and custom engineering services (ODM) like LCD kiting, touch screen integration, LCD panel integration and enhancement.

- Professional technical supports and custom engineering services (ODM)
- Complete LCD panel size from12" ~ 46"
- Ideal for retails, medical equipment, financial services, transportations, International tradeshow and conference, and industrial LCD monitor
- Optional supports for lcd controller board, CCFL LCD inverter, touch screen, and peripheral

TOP▲

Desktop Standard Ratio

Model Number	Interface	Resolution	Brightness	Contrast Ratio
AUO 17"_M170EG01 VD	2ch LVDS	SXGA 1280 x 1024	300	300:1

TOP▲

Desktop Wide Ratio (16:9)

Model Number	Interface	Resolution	Brightness	Contrast Ratio
AUO 18.5"_M185XW01 V0	1ch LVDS	WXGA 1366 x 768	300	1000:1
AUO 21.5"_M215HW01 V0	2 ch LVDS	WUXGA 1920 x 1080	300	1000:1
AUO 24"_M240HW01 V0	2 ch LVDS	WUXGA 1920 x 1080	300	1000:1

TOP▲

Desktop Wide Ratio (16:10)

Model Number	Interface	Resolution	Brightness	Contrast Ratio
AUO 19" M190PW01 V0	2 ch LVDS	WXGA+ 1440 x 900	300	1000:1
AUO 20.1"_M201EW02 V8	2 ch LVDS	WSXGA+ 1680 x 1050	300	1000:1

TOP▲

NB CCFL

Model Number	Interface	Resolution	Brightness	Contrast Ratio
AUO 12.1"_B121EW03 V7	1ch LVDS	WXGA 1280 x 800	200	400:1
AUO 13.3"_B133EW01	1ch LVDS	WXGA 1280 x 800	250	400:1
AUO 14.1"_B141EW02	1ch LVDS	WXGA 1280 x 800	200	400:1
AUO 14.1"_B141PW01	2ch LVDS	WXGA+ 1440 x 900	220	400:1
AUO 14.1"_B141XG09 V3	1ch LVDS	XGA 1024 x 768	200	300:1
AUO 15"_B150XG02 V4	1ch LVDS	XGA 1024 x 768	180	300:1
AUO 15.4"_B154EW02 V1	1ch LVDS	WXGA 1280 x 800	200	400:1
AUO 17"_B170PW03	2ch LVDS	WXGA+ 1440 x 900	200	400:1
AUO 17"_B170PW07	2ch LVDS	WXGA+ 1440 x 900	500	700:1
AUO 17"_B170UW02 V	2ch LVDS	WUXGA+ 1920 x 1200	400	600:1

TOP▲

Industrial Applications (CCFL Backlight)

Model Number	Interface	Resolution	Brightness	Contrast Ratio
AUO 6.5"_G065VN01 V1	CMOS	VGA 640 x 480	500	600:1
AUO 8.4"_G084SN05 V7	1ch LVDS	SVGA 800 x 600	450	600:1
AUO 10.4"_G104VN01	TTL	VGA 640 x 480	450	700:1
AUO 10.4"_G104SN03 V1	1ch LVDS	SVGA 800 x 600	230	500:1
AUO 12.1"_G121SN01 V3	1ch LVDS	SVGA 800 x 600	400	500:1
AUO 15"_G150XG02 V0	1ch LVDS	XGA 1024 x 768	550	500:1
AUO 15"_G150XG03 V2	1ch LVDS	XGA 1024 x 768	250	700:1
AUO 22"_G220SW01 V0	2ch LVDS	WSXGA+ 1680 x 1050	300	1000:1
AUO 42"_G420XW01 V0	1ch LVDS	WXGA 1366 x 768	700	2000:1
AUO 42"_G420XW02 V0	1ch LVDS	WXGA 1366 x 768	500	2500:1

TOP▲

TV HD

Model Number	Interface	Resolution	Brightness	Contrast Ratio
AUO 21.6"_T216XW01	1ch LVDS	WXGA 1366 x 768	350	2500:1
AUO 26"_T260XW02	1ch LVDS	WXGA 1366 x 768	450	3000:1
AUO 32"_T315XW02	1ch LVDS	WXGA 1366 x 768	450	3000:1
AUO 37"_T370XW02	1ch LVDS	WXGA 1366 x 768	450	3000:1

TOP▲

TV Full HD

Model Number	Interface	Resolution	Brightness	Contrast Ratio
AUO 32"_T315HW02	2ch LVDS	WUXGA 1920 x 1080	500	5000:1
AUO 32"_T315HW02 Vx	2ch LVDS	WUXGA 1920 x 1080	500	5000:1
AUO 37"_T370HW02	2ch LVDS	WUXGA 1920 x 1080	500	3000:1
AUO 37"_T370HW02 Vx	4ch LVDS	WUXGA 1920 x 1080	500	3000:1
AUO 42"_T420HW04	2ch LVDS	WUXGA 1920 x 1080	500	5000:1
AUO 42"_T420HW04 Vx	4ch LVDS	WUXGA 1920 x 1080	500	5000:1
AUO 46"_T460HW03	2ch LVDS	WUXGA 1920 x 1080	500	5000:1
AUO 46"_T460HW03 Vx	4ch LVDS	WUXGA 1920 x 1080	500	5000:1

TOP▲

Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…

TOP▲

Retails and restaurant
Medical equipment
Financial services
International tradeshow and conference
Transportations: terminal, Airport, train, bus, and metro
Entertainment: museum, stadium, theater, arena, and entertainment park
Industrial LCD monitor
Kiosk
