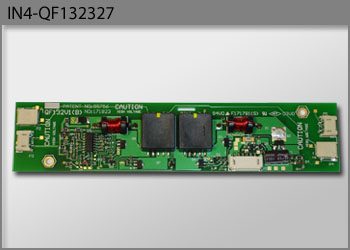

4 CCFLs LCD Inverter - IN4-QF132327

Product catalog

Product manual

Splendi inc. offers a complete product line of LCD inverters -1 ccfl, 2 ccfls, 4 ccfls, and 6 ccfls. The IN4 series DC To AC inverters is designed with 4 ccfls which is able to drive 4-tube backlight. With the advantages of low noise and high frequency, and as a low profile and light weight switching power supply, it’s compatible to the LCD panels of AUO, CMO, Kyocera, Samsung, Sharp, NEC, Mitsubishi and LG…etc.

- Applicable to 4 tubes backlight
- Constant current output
- Possesses open load protection when lamp is open
- No load–output auto stop
- Meet TCO 99

TOP▲

19” LCD Panel:		CMO-M190A1-L07
20.1” LCD Panel:		AUO-M201EW02 V8 AUO-M201EW02 VC AUO-M201UN02 CMO-M201P1-L01
22.0” LCD Panel:		AUO-M220EW01 AUO-M220SP01 V0 AUO-M220EW01 V0 AUO-M220EW01 V1 CMO-M220Z1-L01 CMO--M220Z1-L06

Operating Condition

Item	Symbol	Condition	Min.	Max.	Unit
Input Voltage	Vin		10	-	V
Operating Temperature	Top	Ha=90%RH	0	65	℃
Storage Temperature	Tstg	Ha=95%RH	-10	80	℃
Operating Humidity	Hop	Ta=0 ~ 55 ℃	20	90	%RH
Storage Humidity	Hstg	Ta=20 ~ 80 ℃	-	95	%RH

TOP▲

Operating Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Input Voltage	Vin	GND=0V	10.8	12	13.2	V
Input Current (Low Brightness)	IinL	Vin=Typ. ±1% ON VR=Min. (Iout=Min.)	1100	1250	1450	mA
Input Current (High Brightness)	IinH	Vin=Typ. ±1% ON VR=Max. (Iout=Max.)	2150	2500	2650	mA CV=0V
Lamp Current (Low Brightness)	IoutL	Vin=Typ. ±1% ON VR=Min. (Iout=Min.)	1.4	2	2.6	mA / rms
Lamp Current (High Brightness)	IoutH	Vin=Typ. ±1% ON VR=Max. (Iout=Max.)	6.2	6.7	7.5	mA CV=0.2V
Lamp Current (High Brightness)	IoutH	Vin=Typ. ±1% ON VR=Max. (Iout=Max.)	6.5	7	8	mA CV=0V
Working Frequency			40	43	48	KHz
Dimming		Tube Current	>2.5:1	-	-
Brightness Control		Connection of Voltage	5	-	0	V
Output Voltage		CCFT Current= 5mA	-	850	-	V

TOP▲

Connector Socket - (CN1) Input Connector

Item	Symbol	Description
1	Vin	DC+12V
2	Vin	DC+12V
3	GND	Ground
4	Brightness	Digital Brightness Control
5	GND	Ground
6	Control	ON/OFF Control ON=+3~5V OFF=0~0.8V

TOP▲

Connector Socket - (CN2 & CN3) Input Connector

Pin No.	Symbol	Condition
1	Output	Lamp High Voltage
2	Output	Lamp Low Voltage

Connector Socket - Connector Model No. & Brand

Pin No.	Symbol	Condition
CN1	S5B-PH-SM4	JST or Compatible
CN2, CN3	SM02B	JST or Compatible
CN4, CN5	SM02B	JST or Compatible

TOP▲

Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
