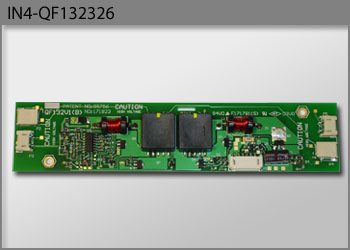

4 CCFLs LCD Inverter - IN4-QF132326

Product catalog

Product manual

Splendi inc. offers a complete product line of LCD inverters -1 ccfl, 2 ccfls, 4 ccfls, and 6 ccfls. The IN4 series DC To AC inverters is designed with 4 ccfls which is able to drive 4-tube backlight. With the advantages of low noise and high frequency, and as a low profile and light weight switching power supply, it’s compatible to the LCD panels of AUO, CMO, Kyocera, Samsung, Sharp, NEC, Mitsubishi and LG…etc.

- Applicable to 4 tubes backlight
- Constant current output
- Possesses open load protection when lamp is open
- No load–output auto stop
- Meet TCO 99

TOP▲

14.1” LCD Panel:		CMO-G141I1-L01
15.0” LCD Panel:		CMO-G154I1-L01 SHARP-LQ150X1LW71 SHARP-LQ150X1LW71N SHARP-NL150A01-L04
17.0” LCD Panel:		AUO-G170EG01 V.0 AUO-M170EG01 VD AUO-M170EG01 N AUO-M170XW01 CMO-M170E5-L09
19.0” LCD Panel:		AUO-M190EG01 V.2 CMO-M190A1-L02 CMO-M190A1-L07 CMO-M190E2-L01 CMO-M190E5-L0A

Operating Condition

Item	Symbol	Condition	Min.	Max.	Unit
Input Voltage	Vin		10	-	V
Operating Temperature	Top	Ha=90%RH	0	65	℃
Storage Temperature	Tstg	Ha=95%RH	-10	80	℃
Operating Humidity	Hop	Ta=0 ~ 55 ℃	20	90	%RH
Storage Humidity	Hstg	Ta=20 ~ 80 ℃	-	95	%RH

TOP▲

Operating Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Input Voltage	Vin	GND=0V	10.8	12	13.2	VV (Vin=12V)
Input Current (Low Brightness)	IinL	Vin=Typ. ±1% ON VR=Min. (Iout=Min.)	680	750	820	mA CV=5V
Input Current (High Brightness)	IinH	Vin=Typ. ±1% ON VR=Max. (Iout=Max.)	1600	1750	1950	mA CV=0.2V
Lamp Current (Low Brightness)	IoutL	Vin=Typ. ±1% ON VR=Min. (Iout=Min.)	1.3	1.7	2.2	mA / rms CV=5V
Lamp Current (High Brightness)	IoutH	Vin=Typ. ±1% ON VR=Max. (Iout=Max.)	6.5	7	7.5	mA / rms CV=0.2V
Lamp Current (High Brightness)	IoutH	Vin=Typ. ±1% ON VR=Max. (Iout=Max.)	7	7.5	8	mA / rms
Working Frequency			40	43	48	KHz
Dimming		Tube Current	>2.5:1	-	-
Brightness Control		Connection of Voltage	5	-	0	V
Output Voltage		CCFT Current= 5mA	-	760	-	V

TOP▲

Connector Socket - (CN1) Input Connector

Item	Symbol	Description
1	Vin	DC+12V
2	Vin	DC+12V
3	GND	Ground
4	Brightness	Digital Brightness Control
5	GND	Ground
6	Control	ON/OFF Control ON=+5V OFF=0V

TOP▲

Connector Socket - (CN2 & CN3) Input Connector

Pin No.	Symbol	Condition
1	Output	Lamp High Voltage
2	Output	Lamp Low Voltage

Connector Socket - Connector Model No. & Brand

Pin No.	Symbol	Condition
CN1	S5B-PH-SM4	JST
CN2, CN3	SM02B	JST
CN4, CN5	SM02B	JST

TOP▲

Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
