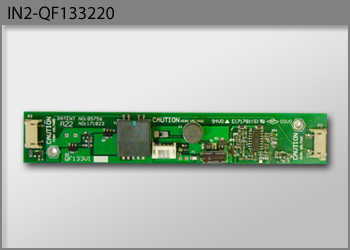

2 CCFLs LCD Inverter - IN2-QF133220
 Product catalog
Product manual
|
|
| |
Splendi inc. offers a complete product line of LCD inverters, 1 ccfl, 2 ccfls, 4 ccfls, and 6 ccfls. The IN2 series DC To AC inverters is designed with 2 ccfls which is able to drive 2-tube backlight. With the advantages of low noise and high frequency, and as a low profile and light weight switching power supply, it’s compatible to the LCD panels of AUO, CMO, Kyocera, Samsung, Sharp, NEC, Mitsubishi and LG…etc. |
| |
| |
 |
- Applicable to 2 tubes backlight
- Constant current output
- Possesses open load protection when lamp is open
- No load–output auto stop
-
Meet TCO 99
|
 |
15.0" LCD Panel: |
|
AUO-M150EW01
AUO-M150EW02 |
18.5" LCD Panel: |
|
AUO-M185XW01 V0
CPT-CLAA185WA02
|
|
 |
Connector Socket - (CN1) Input Connector
Connector Socket - (CN2 & CN3) Input Connector
Connector Socket - Connector Model No. & Brand
|
 |
Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
|
 |
