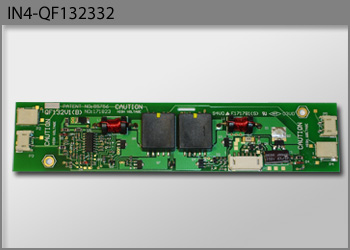

4 CCFLs LCD Inverter - IN4-QF132332
 Product catalog
Product manual
|
|
| |
Splendi inc. offers a complete product line of LCD inverters -1 ccfl, 2 ccfls, 4 ccfls, and 6 ccfls. The IN4 series DC To AC inverters is designed with 4 ccfls which is able to drive 4-tube backlight. With the advantages of low noise and high frequency, and as a low profile and light weight switching power supply, it’s compatible to the LCD panels of AUO, CMO, Kyocera, Samsung, Sharp, NEC, Mitsubishi and LG…etc. |
| |
| |
 |
- Applicable to 4 tubes backlight
- Constant current output
- Possesses open load protection when lamp is open
- No load–output auto stop
-
Meet TCO 99
|
 |
20.1” LCD Panel: |
|
AUO-M201SP01
|
20.5” LCD Panel: |
|
AUO-M215HW01
|
|
 |
Connector Socket - (CN1) Input Connector
Connector Socket - (CN2 ~CN5) Output Connector
Connector Socket - Connector Model No. & Brand
|
 |
Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
|
 |
