LCD Controller Board ST-90

The ST-90 series LCD controller board (A/D board) provides analog and digital connection for wide range of TFT LCD monitor/flat panel display from VGA (640 x 480) to UXGA (1600 x 1200). Embedded with complete signal input ports (computer RGB, DVI). The ST-91 series is an ideal device for the applications of medical equipment, bank industrial, international trade show, transportations, and entertainment.

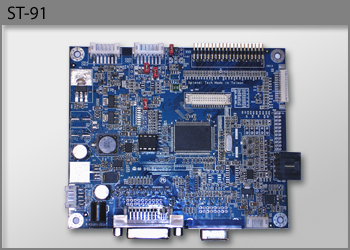

LCD Controller Board - ST-91 (Power Jack, DB15 VGA)
LCD Controller Board - ST-91U4 (Power Jack, DB15 VGA, JST-5P USB, 4-Wire Touch Screen Connector)
LCD Controller Board - ST-91U5 (Power Jack, DB15 VGA, JST-5P USB , 5-Wire Touch Screen Connector)
LCD Controller Board - ST-91R4 (Power Jack, DB15 VGA, JST-4P RS232, 4-Wire Touch Screen Connector)
LCD Controller Board - ST-91R5 (Power Jack, DB15 VGA, JST-4P RS232, 5-Wire Touch Screen Connector)
LCD Controller Board - ST-92 (JST-5P Power, Header VGA)
LCD Controller Board - ST-92U4 (JST-5P Power, Header VGA, JST-5P USB, 4-Wire Touch Screen Connector)
LCD Controller Board - ST-92U5 (JST-5P Power, Header VGA, JST-5P USB, 5-Wire Touch Screen Connector)
LCD Controller Board - ST-92R4 (JST-5P Power, Header VGA, JST-5P USB, 4-Wire Touch Screen Connector)
LCD Controller Board - ST-92R5 (JST-5P Power, Header VGA, JST-5P USB, 5-Wire Touch Screen Connector)
LCD Controller Board - ST-91 (Power Jack, DB15 VGA)
LCD Controller Board - ST-95U4 (Power Jack, DB15 VGA, DVI-29, JST-5P USB, 4-Wire Touch Screen Connector)
LCD Controller Board - ST-95U5 (Power Jack, DB15 VGA, DVI-29, JST-5P USB , 5-Wire Touch Screen Connector)
LCD Controller Board - ST-95R4 (Power Jack, DB15 VGA, DVI-29, JST-4P RS232, 4-Wire Touch Screen Connector)
LCD Controller Board - ST-95R5 (Power Jack, DB15 VGA, DVI-29, JST-4P RS232, 5-Wire Touch Screen Connector)
LCD Controller Board - ST-96 (Power Jack, Header VGAA)
LCD Controller Board - ST-96U4 (Power Jack, Header VGA, DVI-29, JST-5P USB, 4-Wire Touch Screen Connector)
LCD Controller Board - ST-96U5 (Power Jack, Header VGA, DVI-29, JST-5P USB , 5-Wire Touch Screen Connector)
LCD Controller Board - ST-96R4 (Power Jack, Header VGA, DVI-29, JST-4P RS232, 4-Wire Touch Screen Connector)
LCD Controller Board - ST-96R5 (Power Jack, Header VGA, DVI-29, JST-4P RS232, 5-Wire Touch Screen Connector)
- Compatibility with standard VESA mode
- Support wide variety ranges of TFT LCDs from VGA (640 x 480) to UXGA (1600 x 1200)
- Customization for specific application requirements (ODM)
- Automatic image scaling and contrast enhancement
- Support color: 6/8 bit TFT LCD
- Screen Scaling: Up / Down scaling to fit input to panel format
- Dual Backlight functions: CCFL / LED


Panel Connectivity - Resolution:
TFT VGA 640 x 480
TFT SVGA 800 x 600
TFT WVGA 800 x 480
TFT WSVGA 1024 x 600
TFT XGA 1024 x 768
TFT WXGA 1280 x 720
TFT WXGA 1280 x 768
TFT WXGA 1280 x 800
TFT WXGA 1366 x 768
TFT WXGA+ 1440 x 900
TFT SXGA 1280 x 1024
TFT WSXGA+ 1680 x 1050
TFT UXGA 1600 x 1200

Input Interface:
Analog RGB: 60Hz at WSXGA+, UXGA
75Hz at SXGA, WXGA, XGA, SVGA, VGA
DVI-D / HDMI: 60Hz (Please use HDMI to DVI connector/ cable, not support HDCP)

Color: 6/8 bit TFT LCD

Function: On Screen Display (OSD) menu

Function Control: External buttons, Infra-Red controls, Serial Port control, Serial port module

Image Scaling: Up / Down scaling to fit input to panel format

Image Control: Auto configuration, Brightness, Contrast, Clock, Phase, Color temperature, Image position,Saturation, Hue, Black level.

OSD (On Screen Display):
Auto setup, Factory reset, OSD position, Timeout, Scaling to fill screen and fill to aspect, ACC / ACM-II color enhancement & Contrast adjustment

Power Requirements: +12VDC / +24VDC ±5%,10W

Panel Power: Supports 3.3V, 5V, 12V, 18V & 24V panels (Vin must be 18V or 24V)

Panel Signal: Dual channel LVDS support

Panel Connection: One 30-pin LVDS connector
One 40-pin TTL connector

Inverter Support: DPMS Enable pin (3.3V or 5V)

Plug & Play: DDC 1,2/b compatible

Status Indicator: Dual Color LED support

Board Dimension:

Weight:
Retails and restaurant
Medical equipment
Financial services
International tradeshow and conference
Transportations: terminal, Airport, train, bus, and metro
Entertainment: museum, stadium, theater, arena, and entertainment park
Industrial LCD monitor
Kiosk
Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
