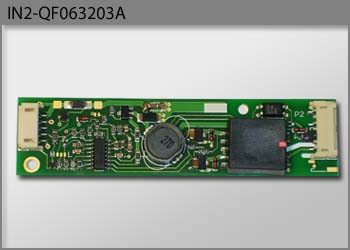

2 CCFLs LCD Inverter - IN2-QF063203A

Splendi inc. offers a complete product line of LCD inverters, 1 ccfl, 2 ccfls, 4 ccfls, and 6 ccfls. The IN2 series DC To AC inverters is designed with 2 ccfls which is able to drive 2-tube backlight. With the advantages of low noise and high frequency, and as a low profile and light weight switching power supply, it’s compatible to the LCD panels of AUO, CMO, Kyocera, Samsung, Sharp, NEC, Mitsubishi and LG…etc.


- Applicable to single tube backlight
- Constant current output
- Possesses open load protection when lamp is open
- No load–output auto stop
- Meet TCO 99
10.4” LCD Panel:

AUO-G104SN02 V.0
AUO-G104SN02 V.1
CMO-G104V1-T01
NEC-NL6448BC33-59

Operating Condition

Item

Symbol

Condition

Min.

Max.

Unit

Input Voltage

Vin

9.0

-

V

Operating Temperature

Top

Ha=90%RH

0

65

Storage Temperature

Tstg

Ha=95%RH

-10

80

Operating Humidity

Hop

Ta=0 ~ 55 ℃

20

90

%RH

Storage Humidity

Hstg

Ta=20 ~ 80 ℃

-

95

%RH


Operating Characteristic

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Input Voltage

Vin

GND=0V

10.8

12

13.2

V

Input Current
(Low Brightness)

IinL

Vin=Typ. ±1% ON
VR=MIN  (Iout=MIN)

260

330

400

mA

Input Current
(High Brightness)

IinH

Vin=Typ. ±1% ON
VR=Max. (Iout=Max.)

600

680

780

mA

Lamp Current
(Low Brightness)

IoutL

Vin=Typ. ±1% ON
VR=Min. (Iout=Min.)

2.4

3.0

3.5

mA / rms

Lamp Current
(High Brightness)

IoutH

Vin=Typ. ±1% ON
VR=Max. (Iout=Max.)

5.8

6.2

6.6

mA / rms

Working Frequency





40

45

50

KHz

Dimming



Tube Current

>2:1

-

-



Brightness Control



Connection of Voltage

5

-

0

V

Output Voltage



CCFT Current= 5mA

-

630

-

V


Connector Socket - (P1) Input Connector

Item

Symbol

Description

1

Vin

DC+12V

2

GND

Ground

3

Control

ON/OFF control ON=+3 ~ 5V OFF=0 ~ 0.08V

4

Brightness

Brightness Control

5

GND

Ground

Connector Socket - (P2) Output Connector

Pin No.

Symbol

Condition

1

Output

Lamp Low Voltage

2
Output
Lamp High Voltage

3

Output

Lamp High Voltage


Connector Model No & Brand

Pin No.

Symbol

Brand

P1

S5B-PH-SM4

JST or compatible

P2

SM03 (4.0)

JST or compatible


Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
Splendi Technology Corp., Ltd. / E-mail: sales@splendi.com.tw / Tel: 886-2-2647-6609 / Fax: 886-2-2647-6619 / Address:2F.-3, No.263, Sec. 2, Datong Rd., Sijhih City, Taipei County 221, Taiwan
