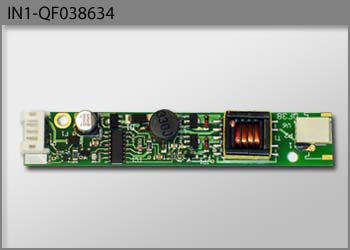

1 CCFL LCD Inverter - IN1-QF038634

Splendi inc. offers a complete product line of LCD inverters -1 ccfl, 2 ccfls, 4 ccfls, and 6 ccfls. The IN1 series DC To AC inverters is designed with 1 ccfl which is able to drive single backlight. With the advantages of low noise and high frequency, and as a low profile and light weight switching power supply, it’s compatible to the LCD panels of AUO, CMO, Kyocera, Samsung, Sharp, NEC, Mitsubishi and LG…etc.


- Applicable to single tube backlight
- Constant current output
- Possesses open load protection when lamp is open
- No load–output auto stop
- Meet TCO 99
8.4” LCD Panel:
  AUO-G084SN03 V.0
AUO-G084SN03 V1
10.0” LCD Panel:

TOSHIBA-LTM10C306L
10.4” LCD Panel:

AUO-G104SN03 V1
TOSHIBA-LTD104KA1S
10.0” LCD Panel:

TOSHIBA-LTM10C321
12.1” LCD Panel:


CMO12.1"-N121X5-L03
CMO12.1"-N121X5-L04
CMO12.1"-N121X5-L06

13.3” LCD Panel:

SHARP-LQ133X1LH27

Operating Condition

Item

Symbol

Condition

Min.

Max.

Unit

Input Voltage

Vin

10

14

V

Operating Temperature

Top

Ha=90%RH

0

65

Storage Temperature

Tstg

Ha=95%RH

-10

80

Operating Humidity

Hop

Ta=0 ~ 55 ℃

20

90

%RH

Storage Humidity

Hstg

Ta=20 ~ 80 ℃

-

95

%RH


Operating Characteristic

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Input Voltage

Vin

GND=0V

10.8

12

13.2

V

Input Current
(Low Brightness)

IinL

Vin=Typ. ±1% ON
VR=MIN  (Iout=MIN)

120

150

180

mA
CV=5V

Input Current
(High Brightness)

IinH

Vin=Typ. ±1% ON
VR=Max. (Iout=Max.)

200

240

280

mA
CV=0V

Lamp Current
(Low Brightness)

IoutL

Vin=Typ. ±1% ON
VR=Min. (Iout=Min.)

1.2

1.7

2.5

mA / rms
CV=5V

Lamp Current
(High Brightness)

IoutH

Vin=Typ. ±1% ON
VR=Max. (Iout=Max.)

4.1

4.6

5.1

mA / rms
CV=0V

Working Frequency





50

55

60

KHz

Dimming



Tube Current

>2.5:1

-

-



Brightness Control



Connection of Voltage

5

-

0

V

Output Voltage



CCFT Current= 4mA

-

460

-

V(Ta=25℃)


Connector Socket - (P1) Input Connector

Item

Symbol

Description

1

Vin

DC+12V

2

GND

Ground

3

Brightness

Digital Brightness Control

4

GND

Ground

5

Control

ON/OFF Control ON=+5V OFF=0V

Connector Socket - (P2) Input Connector

Pin No.

Symbol

Condition

1

Output

Lamp High Voltage

2

Output

Lamp Low Voltage


Connector Socket - (P3) Input Connector

Pin No.

Symbol

Condition

P1(V6)

S5B-PH-K

JST

P2

SM02B-BHSS

JST


Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
