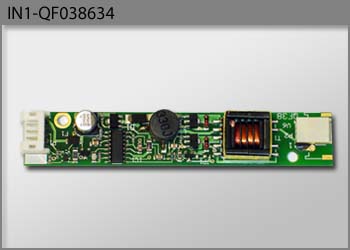

1 CCFL LCD Inverter - IN1-QF038634

Product catalog

Product manual

Splendi inc. offers a complete product line of LCD inverters -1 ccfl, 2 ccfls, 4 ccfls, and 6 ccfls. The IN1 series DC To AC inverters is designed with 1 ccfl which is able to drive single backlight. With the advantages of low noise and high frequency, and as a low profile and light weight switching power supply, it’s compatible to the LCD panels of AUO, CMO, Kyocera, Samsung, Sharp, NEC, Mitsubishi and LG…etc.

- Applicable to single tube backlight
- Constant current output
- Possesses open load protection when lamp is open
- No load–output auto stop
- Meet TCO 99

TOP▲

8.4” LCD Panel:		AUO-G084SN03 V.0 AUO-G084SN03 V1
10.0” LCD Panel:		TOSHIBA-LTM10C306L
10.4” LCD Panel:		AUO-G104SN03 V1 TOSHIBA-LTD104KA1S
10.0” LCD Panel:		TOSHIBA-LTM10C321
12.1” LCD Panel:		CMO12.1"-N121X5-L03 CMO12.1"-N121X5-L04 CMO12.1"-N121X5-L06
13.3” LCD Panel:		SHARP-LQ133X1LH27

TOP▲

Operating Condition

Item	Symbol	Condition	Min.	Max.	Unit
Input Voltage	Vin		10	14	V
Operating Temperature	Top	Ha=90%RH	0	65	℃
Storage Temperature	Tstg	Ha=95%RH	-10	80	℃
Operating Humidity	Hop	Ta=0 ~ 55 ℃	20	90	%RH
Storage Humidity	Hstg	Ta=20 ~ 80 ℃	-	95	%RH

TOP▲

Operating Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Input Voltage	Vin	GND=0V	10.8	12	13.2	V
Input Current (Low Brightness)	IinL	Vin=Typ. ±1% ON VR=MIN (Iout=MIN)	120	150	180	mA CV=5V
Input Current (High Brightness)	IinH	Vin=Typ. ±1% ON VR=Max. (Iout=Max.)	200	240	280	mA CV=0V
Lamp Current (Low Brightness)	IoutL	Vin=Typ. ±1% ON VR=Min. (Iout=Min.)	1.2	1.7	2.5	mA / rms CV=5V
Lamp Current (High Brightness)	IoutH	Vin=Typ. ±1% ON VR=Max. (Iout=Max.)	4.1	4.6	5.1	mA / rms CV=0V
Working Frequency			50	55	60	KHz
Dimming		Tube Current	>2.5:1	-	-
Brightness Control		Connection of Voltage	5	-	0	V
Output Voltage		CCFT Current= 4mA	-	460	-	V(Ta=25℃)

TOP▲

Connector Socket - (P1) Input Connector

Item	Symbol	Description
1	Vin	DC+12V
2	GND	Ground
3	Brightness	Digital Brightness Control
4	GND	Ground
5	Control	ON/OFF Control ON=+5V OFF=0V

TOP▲

Connector Socket - (P2) Input Connector

Pin No.	Symbol	Condition
1	Output	Lamp High Voltage
2	Output	Lamp Low Voltage

Connector Socket - (P3) Input Connector

Pin No.	Symbol	Condition
P1(V6)	S5B-PH-K	JST
P2	SM02B-BHSS	JST

TOP▲

Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
