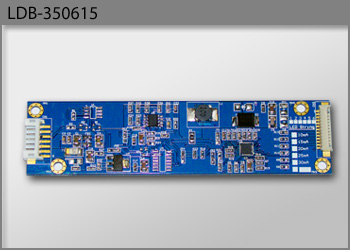

LED Controller Board – LDB-350615
 Product catalog
Product manual
|
|
| |
Nowadays, using LED backlighting for a wide range of displays to reduce backlight power dissipation is a growing industry trend. The LBD-350615 LED Controller Board is designed to power 6 strings of LED backlight module. This device includes a variety of safety features including short circuit, over-voltage, and over-current. The LBD-350615 LED Controller Board is suitable for medical, consumer, industrial and instrumentation electronics devices. It’s the best choice for your next backlight design. |
| |
| |
 |
- High efficiency
- Low profile and compact design
- Constant LED current (Option)
- Short circuit and overload protection
- External power On/Off control
|
 |
|
 |
Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
|
 |
